I switched from the Proteus model to the Iris. It is much faster and the result is impeccable, even better from SD to fullHD. When running two processes simultaneously, 32/32 fps (i9 12900k+RTX4090)! I will soon build an i9 14900k+RTX4090 machine and test it as well. Has anyone tested the Rhea? What results did you get with it?
i wish i saw numbers that high but generally i see between 3/4.5 going from 1080p to 4k (often 30fps to 60 using Aion) and thats with single pass proteus, av1 10bit on a 7950x3d (64 gigs 6600mt DDR5) and an RTX 4090 (3ghz core & 11.45ghz mem @ avg of 53c after an hour) and usually im pulling video from an gen4 m.2 990 pro and outputting on a Seagate Barracudaā¦
One day lolā¦one day! Perhaps we will see later this year because im probably going to upgrade to a 9950x3d (mmmm oc support for funsies) and a 5090 but ill keep the same sys ram and drives so it will be a good generational upgrade comparisonā¦although i donāt expect much uplift from the cpu (outside of gaming) i do expect to see something from the gpu.
1 Like
cpu : ryzen 7 2700
memoire : 16 go ddr3
gpu : gtx 1660 oc
720 x 576 > 1280 x 720 : 4 fps (proteus v4)
Nvidia 4:1 adapter? Did you mean a 12VHPWR adapter?
Yes, it is. My power supply will have a factory-dedicated 12VHPWR cable in my 14900k configuration.
that is surprising results, I thought CPU would play much greater role in performance, but it seems not. I have a very old CPU, Intel 4th Generation (we are now at 14th generation), 11 years old (Septā 2013), but yet I am getting better fps upscaling & at higher resolution (720p vs. 1080p). probably due to higher GPU.
cpu : intel 4930k-E (Ivy Bridge-E)
Mem: : 32 gb ddr3
gpu : gtx 1080 Ti
720 x 576 > 1440 x 1080 : 11-12 fps (proteus v4)
2 Likes
I donāt really understand eitherā¦ I think my speeds were faster before. Iāll try reinstalling Windows with just VAI to test. It may just be an option in the BIOS that I skipped or something elseā¦ I donāt really know.
Many months later updateā¦
Nothing has changed lol. I did overclock the CPU to 5.45ghz CCD0 & 5.9ghz CCD1 on the 7950x3d and lowered my GPU memory clock to 11ghz for stability in some games but overall performance is still generally 4ish fps 720/1080p30> 4k60 with single enhancement Proteus and Aion. Chronos is of course a bit faster depending on the video.
Really itching for nVidia to hurry up with the 5090 to see if there is any topaz improvements but mostly itās because Iāve been working on my own image creation LLM model recently
1 Like
When using Proteus, I found that changing the GPU to a higher performance did not increase the fps significantly. It can be stated that Proteus is a poorly optimized model. Switching to the Iris model brought a significant fps increase for me. I have found that Iris produces a better quality image than Proteus, and it works much faster. Replacing the CPU with a higher performance one also brought a significant increase. You have own model? Interesting.
Wellā¦ Sorta. Itās based on some open source models from about a year ago but Iāve done so much to change it that it might as well just be all new. Itās just something to learn with and mess around really
1 Like
When I changed the VGA from RTX 3080 to 4090 in my 12900k PC, I noticed that the processing speed increased very little. From this I deduced that the speed depends more on the CPU than the GPU. BUTā¦ I transferred the 4090 VGA from my 12900k PC to my 14900k PC and it has exactly the same processing speed for the same source video, with the same fullHD output, with the same model settings. Now Iām confused. I donāt understand what affects the processing speed actually.
I tried to identify the bottleneck of TVAI using the computer parts on hand, but the results only left me more confused.
Here are my test results:
Test Project: 1280720ā>19201080
Model: IRIS MQ(AUTO)
PC1
CPU: R7-2700
MB: ASUS C7H
RAM: DDR4-2666 32G
VGA: Gigabyte 2060S
OTPUT: 5.7fps(avg)
PC2
CPU: R7-2700
MB: ASUS TUF GAMING B550M-PLUS
RAM: DDR4-2666 32G
VGA: Gigabyte 2060S
OTPUT: 3.2fps(avg)
PC3
CPU: R7-9700X
MB: ASUS ROG STRIX B650-A GAMING WIFI
RAM: DDR5-6000 32G
VGA: Gigabyte 2060S
OTPUT: 12.7fps(avg)
PC4
CPU: R7-9700X
MB: ASUS ROG STRIX B650-A GAMING WIFI
RAM: DDR5-6000 32G
VGA: MSI 4060ti
OTPUT: 15.5fps(avg)
So I donāt know what is bottleneckā¦ Motherboad? AM5?
1 Like
The problem is definitely with the model settings. I see you use it auto mode. It is the problem.
Makes sense to me. The R7-2700 CPU can get bogged down much easier in TVAI than the R7-9700X.
The motherboard can play a big role because it sets how the CPU is able to run.
Update some results
Use the same video and Iris MQ AUTO for testing
PC1
CPU: R7-2700
MB: ASUS C7H
RAM: DDR4-2666 32G
VGA: Gigabyte 2060S
OTPUT: 5.7fps(avg)
OS: Windows 11 23H2
PC2
CPU: R7-2700
MB: ASUS TUF GAMING B550M-PLUS
RAM: DDR4-2666 32G
VGA: Gigabyte 2060S
OTPUT: 3.2fps(avg)
OS: Windows 11 23H2
PC3
CPU: R7-5700
MB: ASUS C7H
RAM: DDR4-2666 32G
VGA: Gigabyte 2060S
OTPUT: 5.7fps(avg)
OS: Windows 11 23H2
PC4
CPU: R7-5700
MB: ASUS TUF GAMING B550M-PLUS
RAM: DDR4-2666 32G
VGA: Gigabyte 2060S
OTPUT: 3.2fps(avg)
OS: Windows 11 23H2
PC5
CPU: R7-5700
MB: ASUS TUF GAMING B550M-PLUS
RAM: DDR4-2400 32G
VGA: Gigabyte 2060S
OTPUT: 7.7fps(avg)
OS: Windows 11 24H2
PC6
CPU: R7-5700
MB: ASUS TUF GAMING B550M-PLUS
RAM: DDR4-2400 32G
VGA: MSI 4060ti
OTPUT: 8fps(avg)
OS: Windows 11 24H2
PC7
CPU: R7-9700X
MB: ASUS ROG STRIX B650-A GAMING WIFI
RAM: DDR5-6000 32G
VGA: Gigabyte 2060S
OTPUT: 12.7fps(avg)
OS: Windows 11 24H2
PC8
CPU: R7-9700X
MB: ASUS ROG STRIX B650-A GAMING WIFI
RAM: DDR5-6000 32G
VGA: MSI 4060ti
OTPUT: 15.5fps(avg)
OS: Windows 11 24H2
If thereās time next time, I will also update R7-2700 + C7H to 24H2 and test again to see if there are any changes.

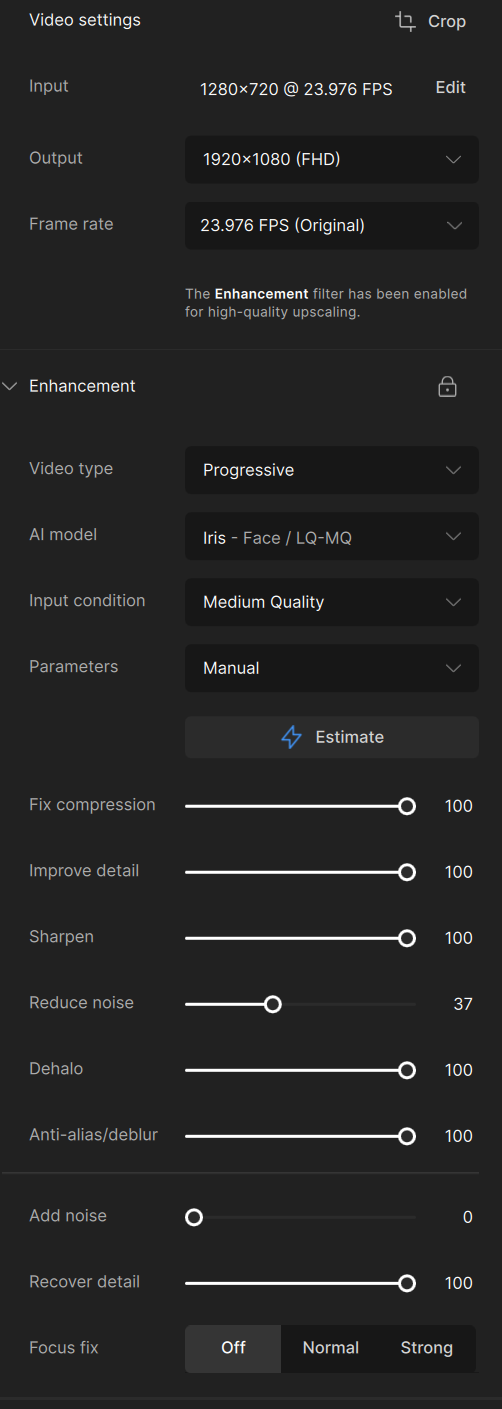

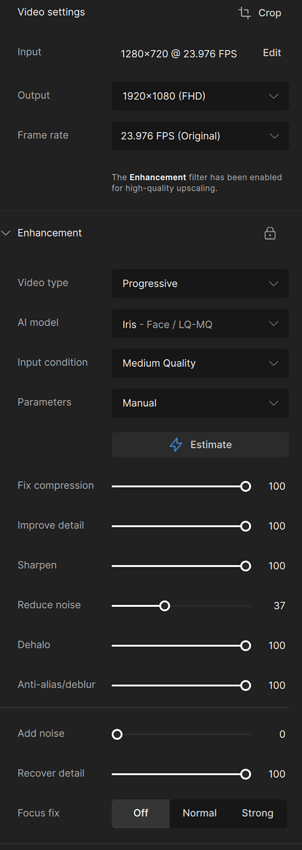

garfieldteashop use my manual settings for test!
I use this PC with your manual setting, the result is the same.
CPU: R7-9700X
MB: ASUS ROG STRIX B650-A GAMING WIFI
RAM: DDR5-6000 32G
VGA: MSI 4060ti
OTPUT: 15.5fps(avg)
OS: Windows 11 24H2
1 Like
Thatās absolutely correct. There is nothing wrong with your hardware
I use R7-2700+C7H with Win 11 24H2 to try agin, and the result is the sameā¦
PC9
CPU: R7-2700
MB: ASUS C7H
RAM: DDR4-2666 16G
VGA: Zotac 3060ti
OTPUT: 5.5fps(avg)
OS: Windows 11 23H2
PC10
CPU: R7-2700
MB: ASUS C7H
RAM: DDR4-2666 16G
VGA: Zotac 3060ti
OTPUT: 5.5fps(avg)
OS: Windows 11 24H2
